Glass Bridge Navigation, Lutron Lighting, CCTV and Entertainment control for Saloon,

Owner’s Cabin and Ensuite, Bar, Dining, 4 Guest Cabins and Ensuites, Pilothouse,

Spa Pool / Flybridge, Aft Deck, Fore Deck, Captain’s Cabin, Crew Cabins, Crew Mess,

Laundry, Galley, Control Room and Engine Room.

The system provides users with easy access to multiple AV sources and viewing of navigation displays, including a high definition movie / music server with 7 zones and a high power masthead PTZ colour camera distributed to all locations, with LCD ‘finger follow’ control.

Central lighting control for all guest areas.

Control

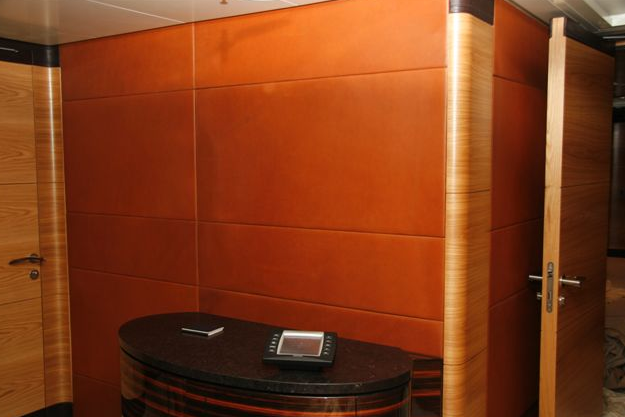

Crestron including 8 x 2-Way RF colour LCD remotes.

Crestron PLC interface allows AV / Nav selection and CCTV control from Alloy Yacht’s custom bridge control stations.

Audio Video Server

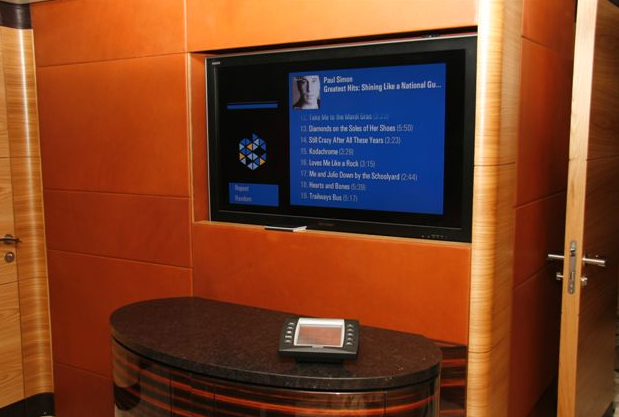

Kaleidescape – 7 zone high definition movie / music players and 3 dedicated music players.  4.5TB of available storage at launch.

Audio

Marantz home theatre systems combined with Speakercraft in-ceiling speakers and Velodyne subs are used throughout the Owner and Saloon areas. Pilothouse and galley have Marantz CD amps with Speakercraft in-ceiling speakers. The remaining areas have the selection of local and distributed audio via Crestron amps and Speakercraft in-ceiling speakers.

Visual

A variety of 26-65″ LCD TVs.

Lighting

Lutron control of lighting in main guest areas.

Features

• Ability to view navigation information such as Radar Port, Radar Stbd, Chart Plotter and Sounder from all video locations in true HD.

• Camera control where the camera will follow the users finger as it moves over the Crestron wireless touch panel.

• Single button muting of outside speakers for crew member operation in emergency situations.

• Global system mute/pause on general alarm.
