Takapuna, Auckland

Luxury Residence

Project Information:

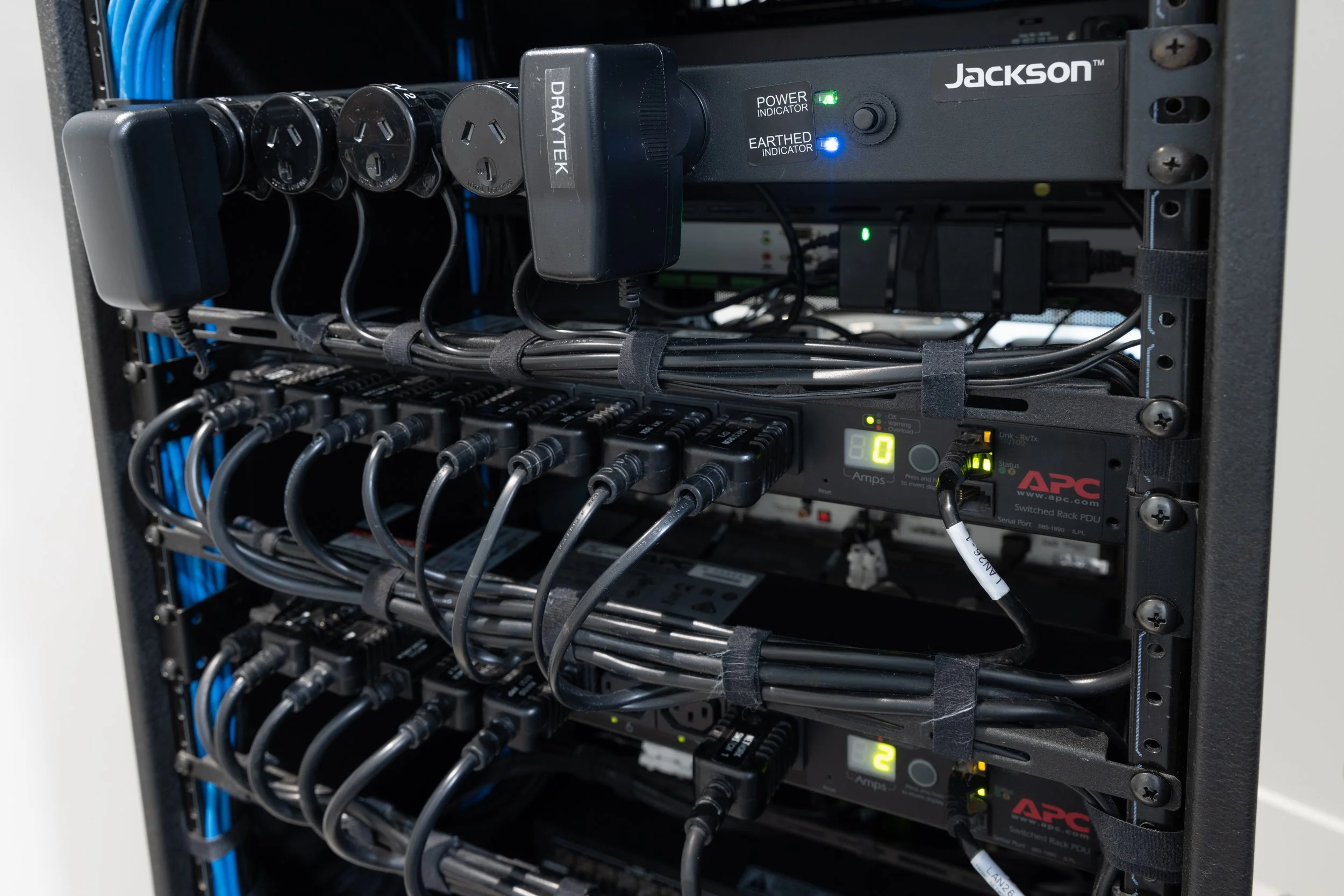

Liquid Automation was entrusted with the responsibility of relocating and upgrading the existing rack layout. Additionally, the existing media room underwent an upgrade, and the necessary systems were adapted to facilitate connectivity.



This project presented significant challenges, as all work on the rack had to be conducted simultaneously with extensive renovation work. Given that the client resided in the house during the ongoing renovation, we ensured that there were no disruptions to the complete lighting, security, and audio-visual system during the relocation of the existing rack.

Control

This project aimed to centralise control over the entire property through substantial enhancements to the existing system.

The following equipment was installed to ensure control of the overall system throughout the property:

  • 1x Crestron TSW-1060-W-S fixed in-wall touch-panel

  • 1x Crestron TSW-760W-S fixed in-wall panel

  • 7x Crestron TSR-310 Touch-screen Handheld Remotes

When users select a shared source from one of the interfaces above, they can ascertain whether any sources are currently in use and their respective zones.

Furthermore, we have introduced a novel priority control logic that enables sources to be configured in one of the following “In-Use” modes:

* Warning Only: If a source is currently in use and an attempt is made to access it in another zone, the user will be presented with a warning prompt indicating the currently in-use source and its location. The user can subsequently choose to cancel or continue using that source.

* Loose Priority: If a source configured for Loose Priority is already in use and an attempt is made to select it in another zone, the user will be prompted with a message stating, “This source is currently in use in Area Name. While you can access it here, you cannot control it.” The user can then cancel or continue watching or listening to the source without any control.

* Strict Priority: If a source configured for Strict Priority is already in use, it cannot be selected in another zone until it is deactivated in its original zone.

Audio and Video Distribution and Control

In response to the client’s preference to retain the existing Sonnex system, a 16x16 DM frame 4K Crestron video distribution solution was selected to accommodate the input and output Sonnex system.

A Monitor Audio media player serves as the primary audio streamer, enabling users to direct music to speakers without interfacing with the control system. The upgraded system comprises six video output zones throughout the residence, while the Sonnex system distributes audio to eight speaker zones.

The audio and video enhancements include a 1080p LED video wall (2400x1350) that replaced a 75-inch television and was fully integrated into the Video Matrix (DM Frame). The current sound system has been recalibrated to optimise the user experience, a new subwoofer has been installed, and an HDMI input plate has been added for media presentations, which is connected to the central Crestron DM Frame. This centralised system allows the client to enjoy live sporting events and cinematic experiences from the comfort of their home.

Network

In response to the extensive upgrades to our existing systems, it was imperative to ensure that the network remained compatible with the new system. Consequently, we installed two network switches and reconfigured them to adhere to industry standards. Furthermore, we extended the wireless coverage area by adding additional WAPs throughout the property, providing comprehensive Wi-Fi connectivity.

Automation

Behind the scenes, complex programming enables fully automated events that eliminate the need for user interaction.

Alarm Activations: Upon activation, specific areas’ lights illuminate, audio playback is muted, and a pop-up appears on all Crestron interfaces. This prompts the user to log in and disarm the alarm.

Alarm Arming: Upon activation of an alarm area, all AV and lighting within that area are deactivated.

Fire Alarm: Upon activation of the fire alarm, a trigger is transmitted to the Crestron system. Upon receipt of this trigger, alerts are displayed on all Crestron interfaces. Crestron subsequently commands the Lutron system to illuminate various lights throughout the property. Additionally, Crestron powers off all AV Zones. When the ICT security system receives this trigger, all electronic doors are unlocked, and an alert is transmitted to the monitoring company.
