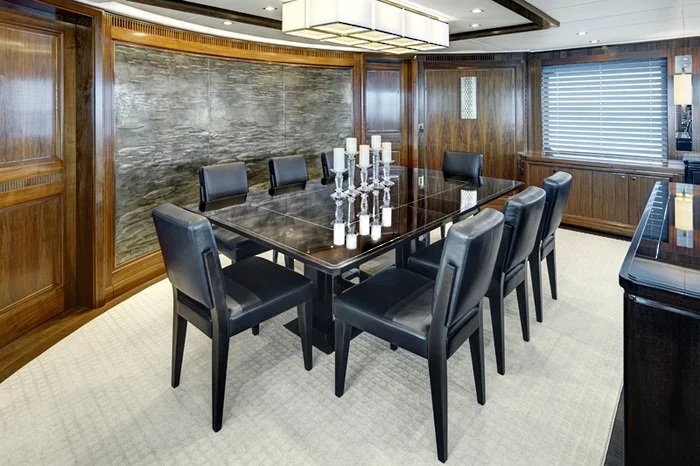

Glass Bridge Navigation, Lutron Lighting, Blinds, CCTV and Entertainment control for Saloon, Owner’s Cabin and Ensuite, Bar, Dining, 4 Guest Cabins and Ensuites, Pilothouse, Spa Pool / Sundeck, Bridge Deck Cockpit, Bridge Deck Saloon, Main Deck Dining, Main Deck Saloon, Galley, Owners Cabin, Owners Study, Crew Mess, Captains Cabin, 4 Guest cabins, Gym, Laundry

The system provides users with easy access to multiple AV sources and viewing of navigation displays, including a high definition movie / music server with 13 zones and a high power masthead PTZ colour camera distributed to all locations, with LCD ‘finger follow’ control.

Control

Crestron/AMX including 12 x 2-Way RF colour LCD remotes.

Crestron PLC interface allows AV / Nav selection and CCTV control from Alloy Yacht’s custom bridge control stations.

Audio Video Server

Kaleidescape – 13 zone high definition movie / music players and 28TB of available storage at launch.

Audio

4 Surround sound systems, 13 sounds of stereo powered by a combination of LabGrupen and Crestron amplification.

Visual

15 screens consisting of a variety of 26-65″ LCD TVs.

Environmental Controls

Lutron control of lighting and window treatments in main guest areas.

Navigation

Glass Bridge control and video matrix of 8 sources to 8 locations/screens

Features

• Ability to view navigation information such as Radar Port, Radar Stbd, Chart Plotter and Sounder around the yacht in true HD.

• Liquid Automation customized Google Earth interface: A 3D model of the yacht follows the position of the vessel in real-time. Using a touch panel, the user can virtually fly from the yacht to the surrounding area.

• Navigation sources are distributed over fibre via a 16 x 16 high definition Digital Media Matrix to the Pilothouse and Flybridge screens. Using fibre gives the matrix complete optical isolation from the DC powered screens.

• Camera control where the camera will follow the user’s finger as it moves over the Crestron wireless touch panel.

• Single-button muting of outside speakers for crew member operation in emergency situations.

• Global system mute/pause on general alarm.

• The Crestron system will email Liquid Automation if a range of faults occurs. For example, Crestron amps will tell us if any speaker has failed or if racks reach preset temperatures they will automatically shut down and notify us.
